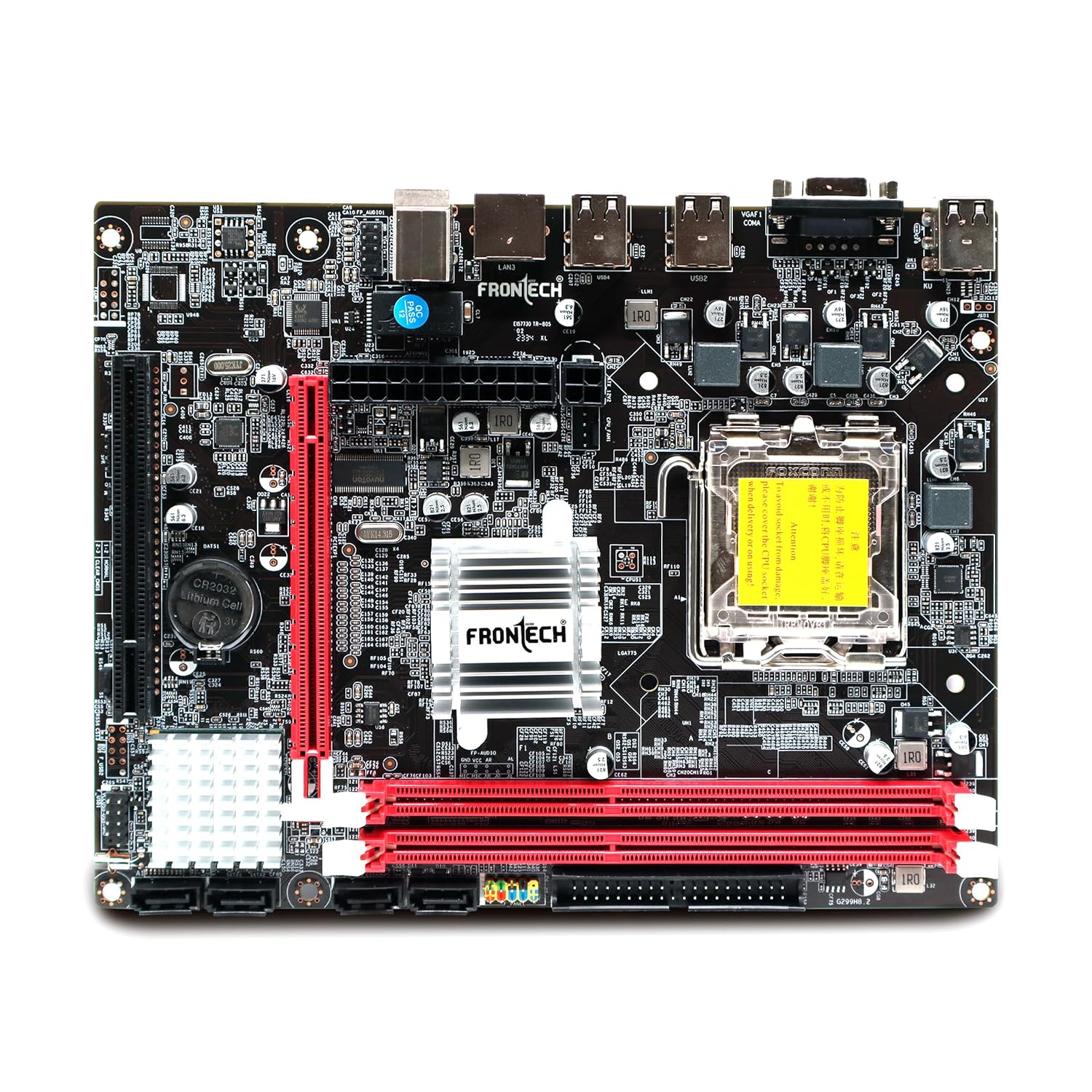

The FRONTECH G41 Chipset Motherboard (model FT-0464) is a budget-friendly motherboard designed to support Intel LGA775 processors. It offers a solid choice for building or upgrading older desktop systems, especially for users who need to work with Intel Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium, or Celeron processors. This motherboard is ideal for basic computing, media consumption, and light office work.

Key Features

1. CPU Socket: LGA775

   • This motherboard supports Intel LGA775 processors, including Core 2 Quad, Core 2 Extreme, Core 2 Duo, Pentium D, and Celeron series processors, making it compatible with a wide range of older Intel processors.

2. Chipset: G41 + 82801

   • Equipped with the G41 chipset and 82801 ICH7 Southbridge, it offers a reliable foundation for older Intel systems. The G41 chipset is known for providing decent support for both graphics and memory, while ensuring stability.

3. RAM Slots: 2x DDR3

   • The motherboard has 2 DDR3 memory slots that support up to 8 GB of DDR3 RAM (maximum of 4 GB per slot). This is sufficient for basic office work, web browsing, and media streaming. The supported RAM speeds are 1066/1333 MHz.

4. Connectivity

   • 6+2 USB Ports: Provides a total of 6 USB 2.0 and 2 USB 1.1 ports for external devices.
   • 4 SATA Ports: You can connect 4 SATA devices (hard drives or SSDs) for data storage.
   • VGA Port: For connecting monitors using a VGA cable, ensuring compatibility with older displays.
   • PCIe x16 Slot: For a graphics card (ideal for light gaming or graphics tasks).
   • PCI Slot: Additional slot for other expansion cards like sound or network cards.

5. Audio and Fan Connectors

   • Includes F-speaker, F-audio, F-panel, and fan connectors to ensure that you can connect speakers, audio systems, and cooling fans.

6. Power Connector

   • Supports an ATX power connector along with a 12V power input and IDE port for older storage devices.

7. Included Accessories

   • Comes with a SATA cable, bracket, and an easy-to-follow manual for installation.

8. Warranty

   • 1-Year Warranty, offering limited coverage for defects and issues.

Advantages

• Budget-Friendly: Priced at ₹1,865, this motherboard offers an affordable solution for users with older processors who need to build or upgrade their PC on a budget.
• Compatibility: Supports a variety of older Intel processors (up to Core 2 Quad) and comes with DDR3 RAM support, making it versatile for various builds.
• Connectivity Options: With 6+2 USB ports, 4 SATA ports, and a PCIe x16 slot, it offers essential connectivity for day-to-day computing needs.
• Basic Gaming/Graphics: The PCIe x16 slot allows for the installation of an entry-level or older graphics card, providing some gaming or graphical performance boost.

Disadvantages

• Limited RAM Capacity: The motherboard supports only up to 8 GB of DDR3 RAM, which is lower than more modern motherboards that support 16 GB or more.
• No USB 3.0 Ports: Lacks newer USB standards like USB 3.0, which could be a limitation if you need high-speed data transfer for devices like external hard drives or flash drives.
• Older Technology: As it's designed for LGA775 processors, it's limited to older Intel chips, meaning you won't be able to upgrade to more recent processors.

Target Audience

• Budget Users: Ideal for those with an older Intel processor or those looking to upgrade their system without breaking the bank.
• Home Users: Suitable for general-purpose tasks like browsing the web, watching videos, and light office work.
• Retro Build Enthusiasts: Users building or refurbishing legacy systems with older hardware.

Final Thoughts

The FRONTECH G41 Chipset Motherboard is a solid choice for users who need an affordable, functional motherboard for Intel LGA775 processors. While it lacks modern features like USB 3.0 or support for more than 8 GB of RAM, it provides ample connectivity options and can handle basic computing tasks well. It's particularly useful for building budget-friendly systems with older components, making it a great option for retro or low-cost builds.
